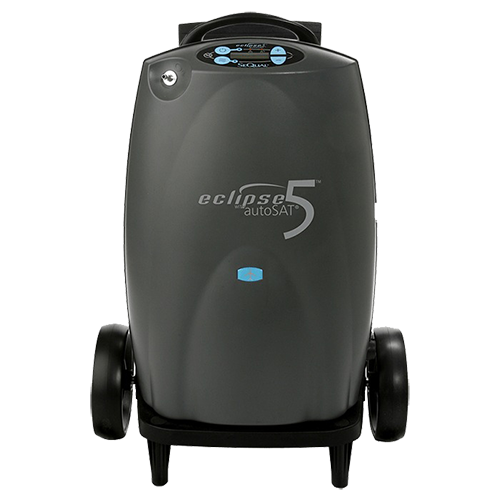

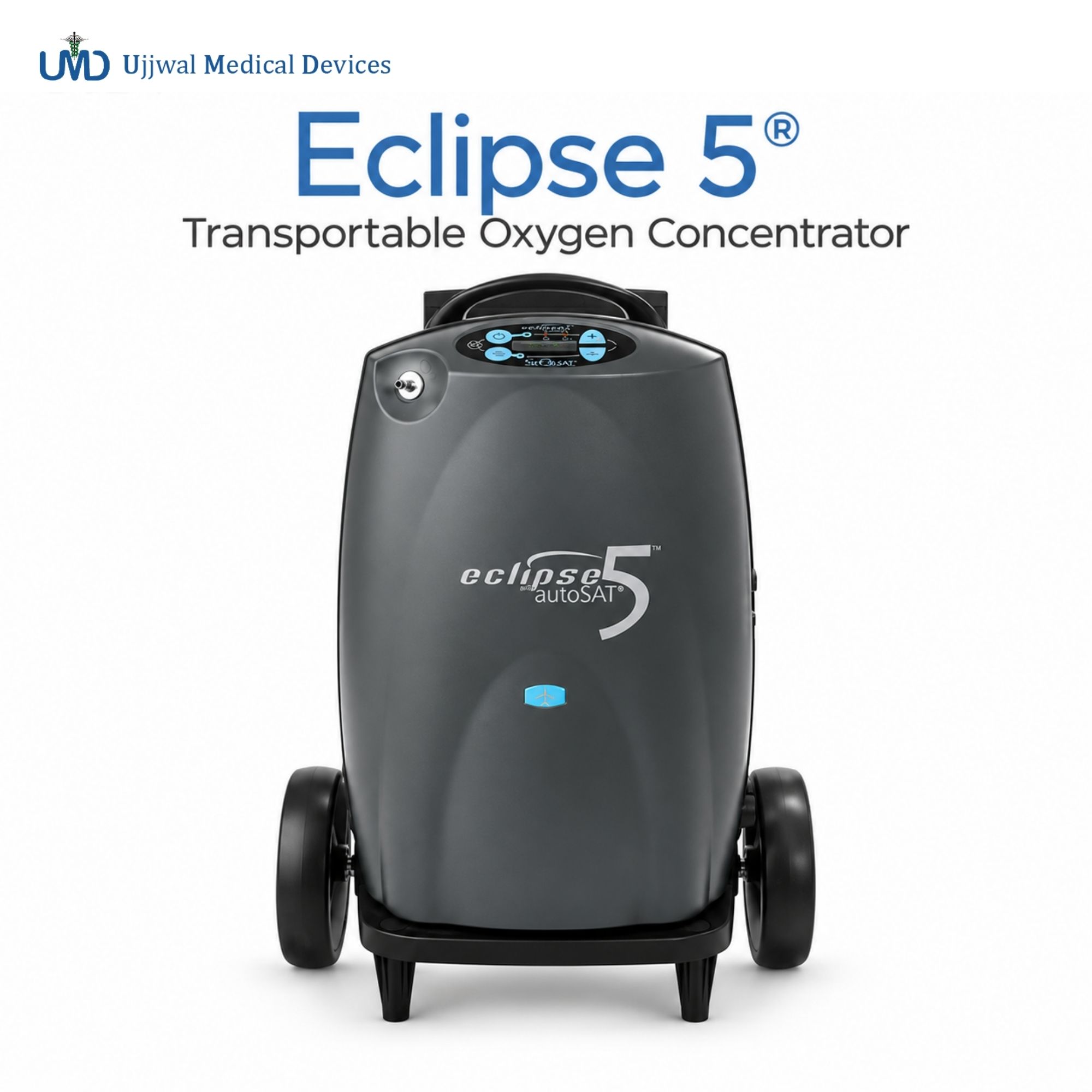

Eclipse 5® Transportable Oxygen Concentrator
The award-winning Eclipse 5 combines portability with clinical efficiency to adapt to your needs and accommodate a variety of activities – giving you the freedom to travel and enjoy life on the go. Suitable for use 24/7 use, this all-in-one oxygen therapy device delivers both continuous flow from 0.5 to 3 LPM (Liters Per Minute) and pulse doses up to a setting of 9.
** A prescription is required from your doctor to purchase this device. Call CAIRE for assistance. **
Visit our Travel & Safety page for information on traveling with your Eclipse 5. NEW View Eclipse Portable Oxygen Concentrator Power Cartridge (Battery) FAQs.
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
The Eclipse 5® Transportable Oxygen Concentrator is a premium portable oxygen therapy system designed to provide reliable oxygen delivery for active patients who require supplemental oxygen both at home and on the go. Manufactured by CAIRE®, the Eclipse 5 combines continuous flow and pulse dose oxygen delivery modes in a durable, transportable design, making it one of the most versatile oxygen concentrators available.
Engineered for mobility and performance, the Eclipse 5 delivers high oxygen output while supporting travel, daily activities, rehabilitation programs, and long-term oxygen therapy. Its FAA-approved design, rechargeable battery system, and integrated cart allow patients to maintain an active lifestyle without sacrificing oxygen therapy requirements.
Key Features
Dual Oxygen Delivery Modes
- Continuous flow oxygen delivery from 0.5–3.0 LPM
• Pulse dose settings 1–9 with advanced AutoSAT® technology
• Automatically adjusts bolus size to maintain oxygen delivery during varying breathing rates
• Suitable for a broad range of oxygen therapy prescriptions
High Oxygen Purity
- Delivers oxygen concentration of approximately 90% (+5.5% / -3%)
• Medical-grade oxygen output across all operating modes
• Reliable performance for long-term respiratory support
Portable & Travel-Friendly Design
- Designed for home use, travel, and outdoor activities
• Integrated transport cart with ergonomic handle
• FAA-compliant for commercial airline travel (subject to airline approval requirements)
• Enables greater patient independence and mobility
Rechargeable Battery System
- Operates using AC power, DC vehicle power, or rechargeable battery
• Battery can be charged while operating on AC or DC power
• Optional extended battery configurations available
• Supports uninterrupted oxygen therapy during travel
Intelligent AutoSAT® Technology
- Maintains a consistent oxygen bolus as breathing rates increase
• Helps support oxygen saturation levels during activity and exercise
• Optimizes oxygen delivery efficiency

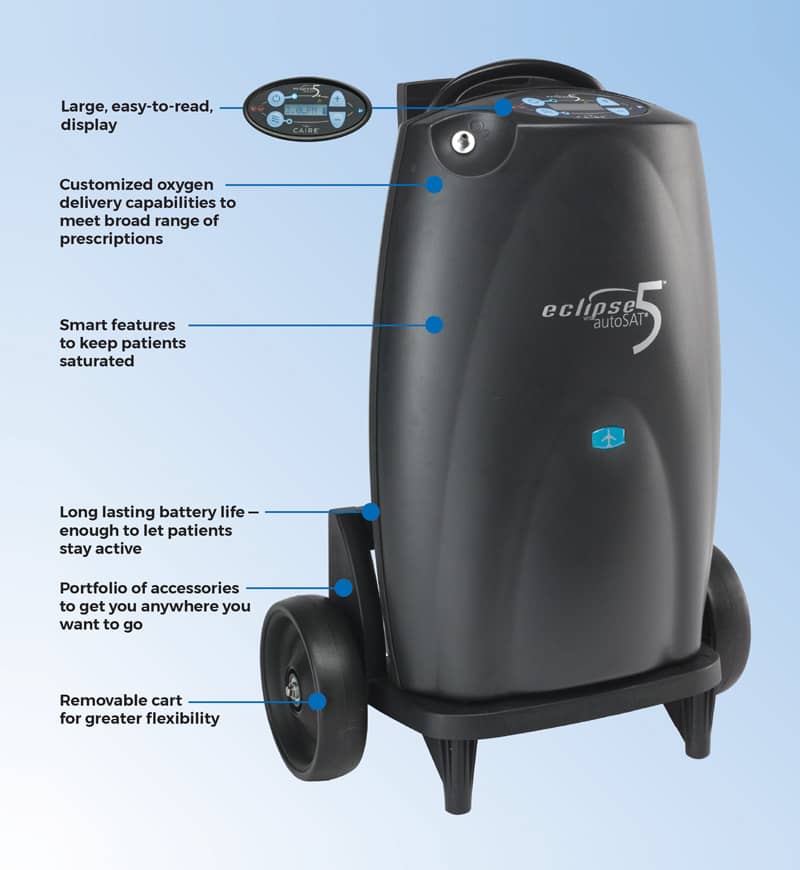

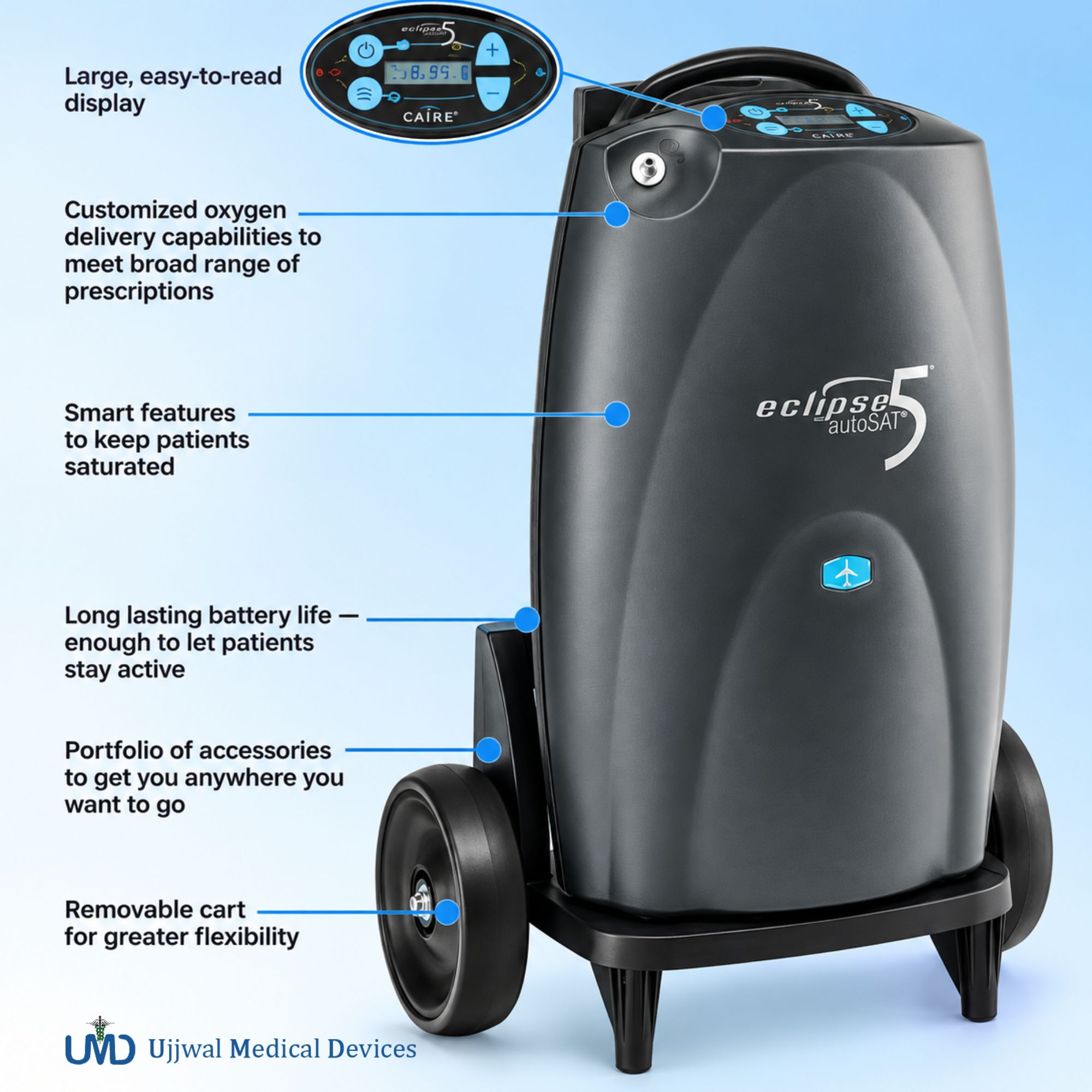

User-Friendly Interface
- Easy-to-read LCD display and control panel
• Clear operating indicators and alarm notifications
• Simple adjustment of oxygen settings and operating modes
Advanced Safety System
- Audible and visual alarms
• Alerts for:
- Power failure
- Low oxygen concentration
- High temperature
- No breath detected (pulse mode)
- System malfunction
- Low battery condition
• Designed for dependable and safe operation

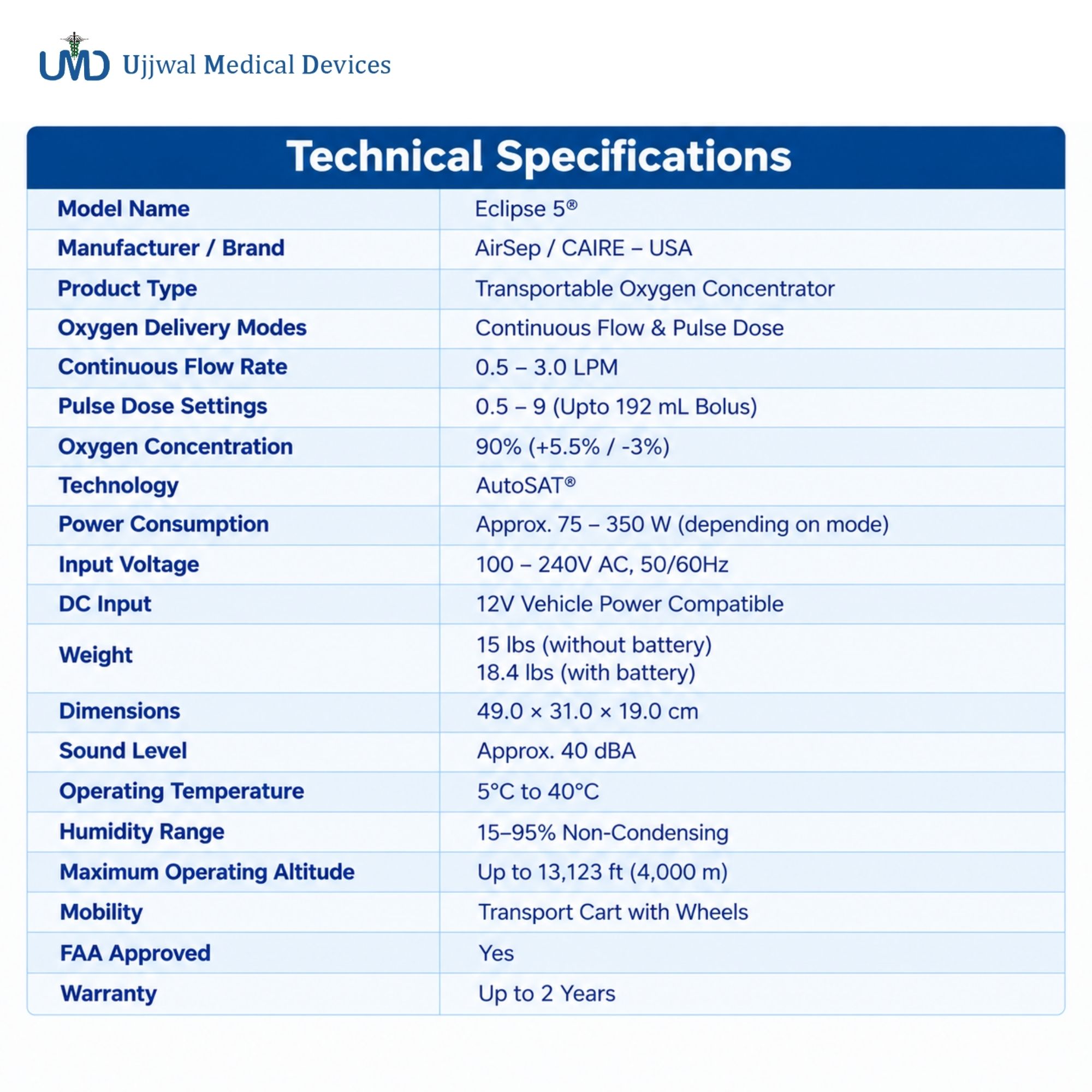

Technical Specifications
| Specification | Details |
| Product Type | Transportable Oxygen Concentrator |
| Oxygen Delivery Modes | Continuous Flow & Pulse Dose |
| Continuous Flow Rate | 0.5–3.0 LPM |
| Pulse Dose Settings | 1–9 |
| Oxygen Concentration | 90% (+5.5% / -3%) |
| Technology | AutoSAT® |
| Power Consumption | Approx. 75–350 W (depending on mode) |
| Input Voltage | 100–240V AC, 50/60Hz |
| DC Input | 12V Vehicle Power Compatible |
| Weight | Approx. 8.3 kg (18.4 lbs) with battery |
| Dimensions | 49.0 × 31.0 × 19.0 cm |
| Sound Level | Approx. 40 dBA |
| Operating Temperature | 5°C to 40°C |
| Humidity Range | 15–95% Non-Condensing |
| Maximum Operating Altitude | Up to 13,123 ft (4,000 m) |
| Mobility | Transport cart with wheels |
| FAA Approved | Yes |
| Warranty | Up to 3 Years (varies by supplier/region) |
Applications
The Eclipse 5 Transportable Oxygen Concentrator is suitable for:
- Home oxygen therapy
• COPD management
• Chronic respiratory disorders
• Active oxygen therapy users
• Air travel and vacation use
• Rehabilitation and recovery programs
• Ambulatory oxygen therapy
• Long-term oxygen treatment programs
Always use oxygen therapy according to a physician’s prescription and guidance.
What’s Included
- Eclipse 5® Transportable Oxygen Concentrator
• Rechargeable battery pack
• AC power supply and power cord
• DC vehicle power adapter
• Transport cart with handle
• User manual
• Quick reference guide
• Oxygen outlet connection
• Optional humidifier kit (where applicable)
• Nasal cannula (supplier dependent)
Benefits
- Supports both continuous flow and pulse dose oxygen therapy
• Designed for travel, mobility, and active lifestyles
• FAA-approved for commercial airline travel
• AutoSAT® technology enhances oxygen delivery performance
• Operates from AC, DC, or battery power sources
• Reliable oxygen output with high purity levels
• User-friendly controls and display system
• Trusted CAIRE® engineering and oxygen therapy expertise
Q & A
Q1: What is the maximum oxygen flow rate of the Eclipse 5?
A: The Eclipse 5 provides continuous flow oxygen up to 3.0 LPM and pulse dose settings from 1 to 9, making it suitable for a wide range of oxygen therapy prescriptions.
Q2: Is the Eclipse 5 approved for air travel?
A: Yes. The Eclipse 5 is FAA-approved for use on commercial aircraft. Patients should still verify specific airline requirements before traveling.
Q3: Can the Eclipse 5 operate on battery power?
A: Yes. The concentrator can operate using its rechargeable battery, AC household power, or DC vehicle power, providing flexibility for travel and daily activities.
Q4: What is AutoSAT® technology?
A: AutoSAT® technology automatically adjusts oxygen delivery to maintain a consistent oxygen bolus as breathing rates increase, helping support oxygen therapy during activity and exercise.
Q5: Is the Eclipse 5 suitable for active users?
A: Yes. The Eclipse 5 is specifically designed for patients who require supplemental oxygen while maintaining an active lifestyle, offering transportability, battery operation, and high oxygen output in a single system.
